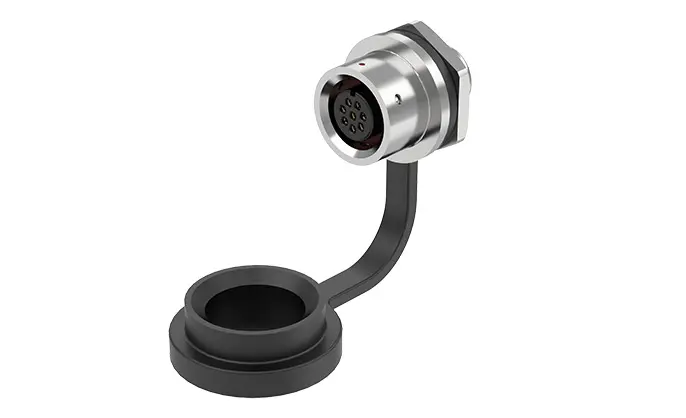

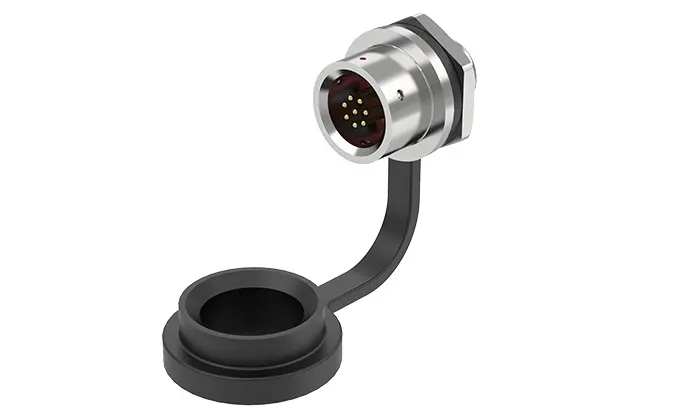

New Sale SF8 8 Pin Circular Plug Socket Panel Mount Connector IP67 Push-Pull All Metal Article no.: ej00001094 Product Categories Female Plug Female Socket Male Plug Male Socket Get A Quote Product Inquiry × Full name and surname * Your Email * Subject Ask for datesheet/drawing? Inquiry for similar items Other Message * Submit Inquiry Main Parameters Product Features Product Parameters Product Size Main Parameters Wiring Mode Solder Type Installation Mode Panel Type Pins 8pin Material All Metal Protection Level IP67 Part No SF8J802-SF8K803 Wre Sizemm2/AWG ≤0.5/20 Contact Resistance mΩ 10 Product features Product parameters Pin 2 3 4 6 8 Rated Current(A) 5A 5A 3A 3A 3A Contact Diameter Φ1.0*2 Φ1.0*3 Φ0.6*4 Φ0.6*6 Φ0.6*8 Rated Voltage(ac.v) 125V 125V 30V 30V 30V Withstand Voltage(AC,V)1 min 1000V 1000V 500V 500V 500V Contact Resistance mΩ 5 5 10 10 10 Welding Wire Gauge mm²/AWG ≤0.75/18 ≤0.75/18 ≤0.5/20 ≤0.5/20 ≤0.5/20 Product size
