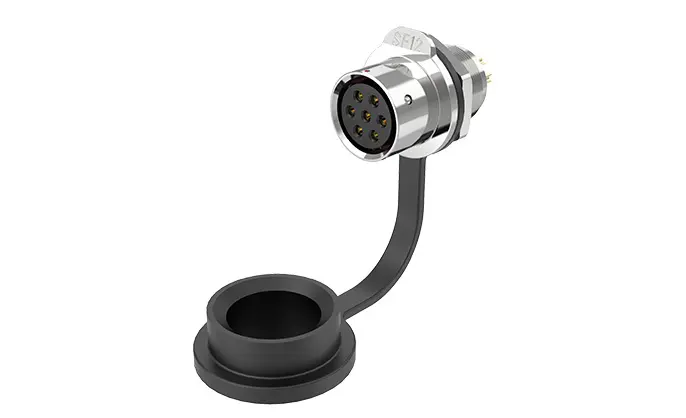

New Sale SF12 7 Pin Panel Mount Connector IP67 Push-Pull All Metal Article no.: ej00001118 Product Categories Female Plug Female Socket Male Plug Male Socket Get A Quote Product Inquiry × Full name and surname * Your Email * Subject Ask for datesheet/drawing? Inquiry for similar items Other Message * Submit Inquiry Main Parameters Product Features Product Parameters Product Size Main Parameters Wiring Mode Solder Type Installation Mode Panel Type Pins 7pin Material All Metal Protection Level IP67 Part No SF12J704-SF12K703 Wre Sizemm2/AWG ≤0.75/18 Contact Resistance mΩ 5 Product features Product parameters Pin 2 3 4 5 6 7 9 Rated Current(A) 10A 10A 5A 5A 5A 5A 5A Contact Diameter Φ1.5*2 Φ1.5*3 Φ1.0*4 Φ1.0*5 Φ1.0*7 Φ1.0*7 Φ0.8*9 Rated Voltage(ac.v) 250V 250V 200V 180V 125V 125V 125V Withstand Voltage(AC,V)1 min 1500V 1500V 1500V 1000V 1000V 1000V 1000V Contact Resistance mΩ 2.5 2.5 5 5 5 5 10 Welding Wire Gauge mm²/AWG ≤2/14 ≤2/14 ≤0.75/18 ≤0.75/18 ≤0.75/18 ≤0.75/18 ≤0.75/18 Product size
