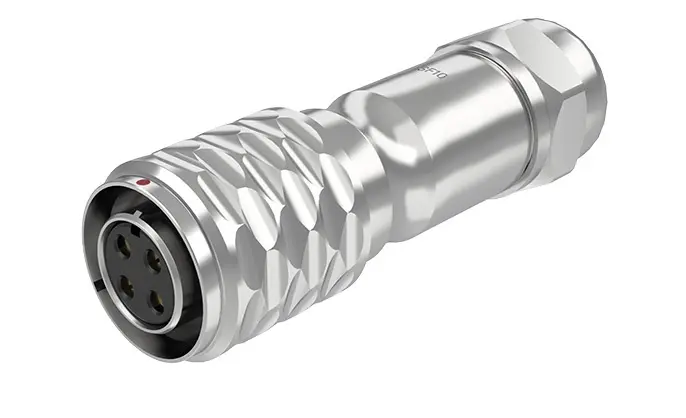

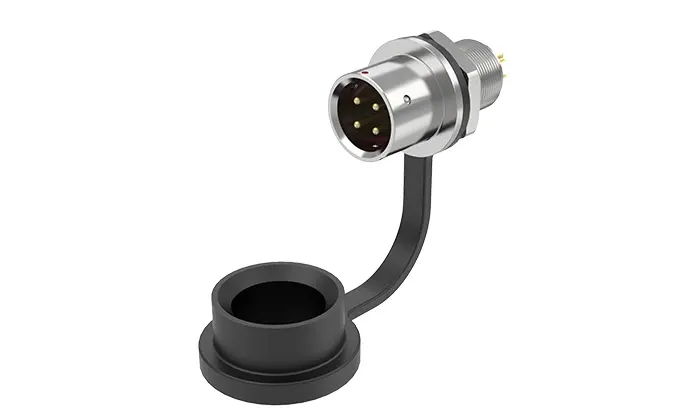

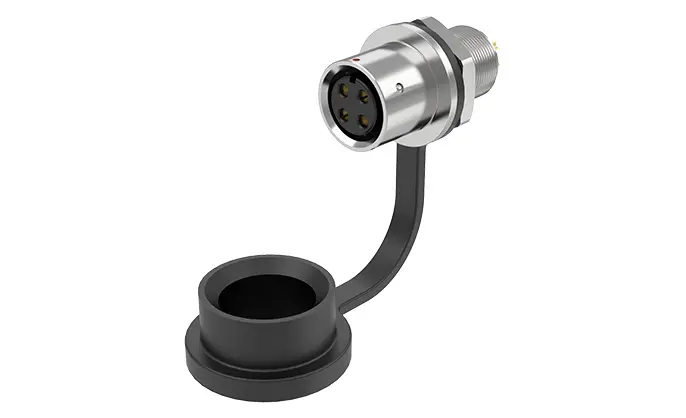

New Sale SF10 4 Pin Circular Connector Electrical Panel Mount Connector IP67 Push-Pull All Metal Article no.: ej00001102 Product Categories Female Plug Female Socket Male Plug Male Socket Get A Quote Product Inquiry × Full name and surname * Your Email * Subject Ask for datesheet/drawing? Inquiry for similar items Other Message * Submit Inquiry Main Parameters Product Features Product Parameters Product Size Main Parameters Wiring Mode Solder Type Installation Mode Panel Type Pins 4pin Material All Metal Protection Level IP67 Part No SF10J404-SF10K407 Wre Sizemm2/AWG ≤0.5/20 Contact Resistance mΩ 10 Product features Product parameters Pin 2 3 4 5 Rated Current(A) 5A 5A 3A 3A Contact Diameter Φ1.0*2 Φ1.0*3 Φ0.7*4 Φ0.7*5 Rated Voltage(ac.v) 180V 180V 125V 125V Withstand Voltage(AC,V)1 min 1000V 1000V 1000V 1000V Contact Resistance mΩ 5 5 10 10 Welding Wire Gauge mm²/AWG ≤0.75/18 ≤0.75/18 ≤0.5/20 ≤0.5/20 Product size
